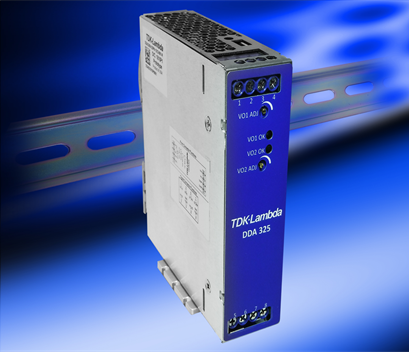

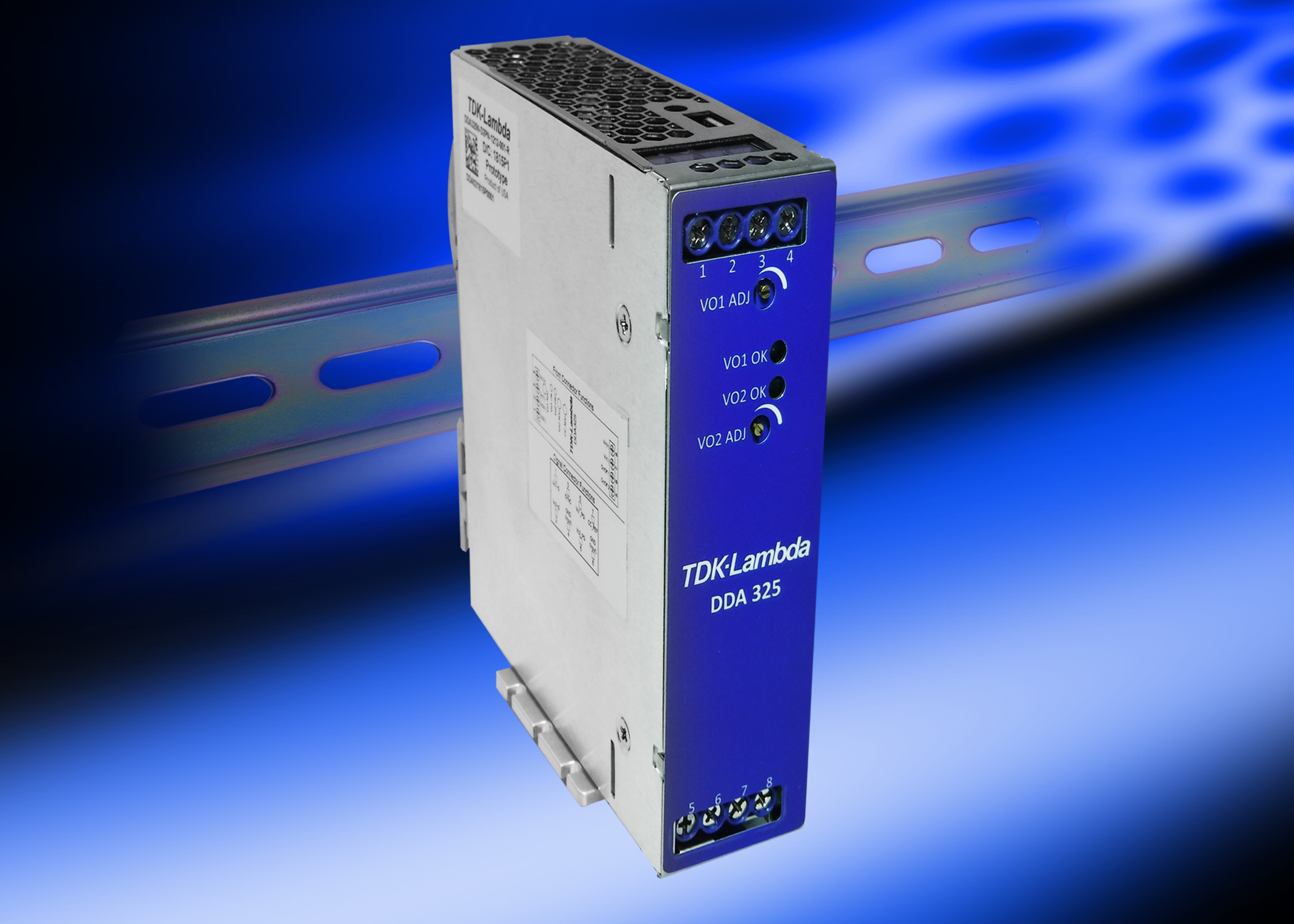

DDA 250-500W Wide range, Non isolated DIN-Rail (Ray montaj) DC-DC Konvertör



Wide Input Range, up to 9 to 53V
Up to 3.3 to 24V Output Adjustment
High Efficiency up to 95%
Narrow 36.5mm Width
Meet EN55022 Class B
Convection and Forced Air Cooled
250W Single Output, 325W and 500W Dual Output Power Levels
Cooling Convection or forced air
Operating Temperature -40 to 100 (see full technical datashee)
MTBF - Telcordia SR-332 >5MHrs; 100% Load, Ta = 40°C
Remote sense
Power good Open collector(s), low on fail



Uygulama Alanları


Açıklama
The DDA DIN rail mount, non-isolated step-down converters are ideal for creating additional high current output voltages from a single output 24V or 48V AC-DC power supply. This highly efficient, compact series accepts a very wide DC input and has a wide output adjustment range with a choice of single or dual output models.

Teknik Broşür, Manuel ve Dosyalar
Benzer Ürünler


Ürün Listesi
Model Adı
Çıkış Gücü
Giriş Gerilimi
Çıkış-1
Çıkış-2
Construction
Datasheet
Gerilim/Akım
Gerilim Ayarı
Gerilim/Akım
Gerilim Ayarı
DDA250N-S1PX-12-001
250W
9 - 53V
12V / 20A
3.3 to 15V
-
-
Enclosed
DDA500N-D2PP-1205-001
250W/250W
9 - 53V
12V / 20A

3.3 to 15V
5V / 20A
3.3 to 15V
Enclosed
DDA325N-D2PN-1212-001
250W/75W
9 - 40V
12V / 14A
3.3 to 24V
-12V / 8A
-3.3 to -24V
Enclosed
