INPUT |
|
Voltage |
Three Phase 220/380 Vac +/- %10 |
Frequency |
50/60 Hz +/-%5 |
Power Factor |
0.95 |
OUTPUT |
|
Voltage |
12, 24, 48, 110, 220 V dc |
| -%30...+%20 (adjustable from front panel within that range) |
Current
|
30, 50, 100 A (See the Table)
|
| Output Current Limit |
Inom x %102, 0 ... %102 (adjustable from front panel within that range) |
| Ripple |
< % 1 |
| Voltage Regulation |
At Floating Charging +/- % 0.5; At Boost Charging +/- % 1 |
| Productivity |
> %90 |
| Protection |
Input and output protection (thermal and magnetic) |
| Overload protection |
| Over voltage protection |
| Short Circuit protection |
| Automatically restarting of the unit |
| Battery Charge Modes (Adjustable Charge Voltages) |
Automatic Charge Floating (float - tampon)ı: 2.25 V/hücre |
| (Boost charge): 2.4 V/hücre |
| Fast Charging Duration |
Up to 24 hours, adjustable with 1-minute accuracy |

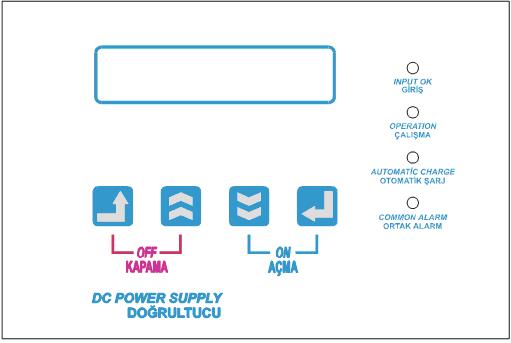

| Digital display features |
2 x 16 character digital display |
| Output current and voltage Error Messages |
| Load (%) Time stamped 50 error Messages |
| Display LEDs |
Line OK LED, Automatic Charging LED, Error LED, Current Limit LED, Equalising Charging LED |
| Command and control |
From the buttons on the front panel |
| Horn |
Audible notification to user. Can be cancelled from related menu |
| Dielektrik |
2000 V I/P – O/P |
| 2000 V I/P - Chase |
| 500 V O/P –Chase (Output voltage below the units of 50 V) |
| 1000 V O/P-Chase (Output voltage above the units of 50 V) |
| |
